Pneumatic cylinders (sometimes known as air cylinders) are mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.
Like hydraulic cylinders, pneumatic cylinders use the stored potentialenergy of a fluid, in this case compressed air, and convert it intokinetic energy as the air expands in an attempt to reach atmosphericpressure. This air expansion forces a piston to move in the desireddirection. The piston is a disc or cylinder, and the piston rodtransfers the force it develops to the object to be moved. Engineersprefer to use pneumatics sometime because they are quieter, cleaner, anddo not require large amounts or space for fluid storage.
Product name: SDA50X20 Thin Type Air Cylinder
Model Number: SL-SDA-50X20
----- SDA50X20 Thin Type Air Cylinder
Specification of
SDA Series Thin Type Air Cylinder:
| Bore Size(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
| Operation Type | Double Acting |
| Single acting extrusion type Single acting drawing-intype | |
| Fluid Medium | 40 Micron Filtered Air |
| Working Pressure | Double Acting | 0.1--0.9Mpa(14--130psi) |
| Single Acting | 0.2--0.9Mpa(29--130psi) | |
| Max. Working pressure | 1.05Mpa(152psi) |
| Working Temperature | 0--70℃ |
| Port Size | M5×0.8 | G1/8″ | G1/4″ | G3/8″ |
| Operating Piston Speed | Double Acting | 30~500 mm/s | 30~350 mm/s | 30~250 mm/s |
| Single Acting | 100~500 mm/s | |
A
compact air cylinder functions in the same manner as a
standard air cylinder with both single and double acting, single or double rod, and non-rotating models. However,
compact cylinders minimize space requirements by allowing for precise, direct mounting in the least amount of space possible.
Application: in various industries like equipments, Machinery, moulding, ship building, CNC Machining.
Ordering Code of
SDA50X20 Air Cylinder:
Stroke of
SDA Series Thin Type Air Cylinder:

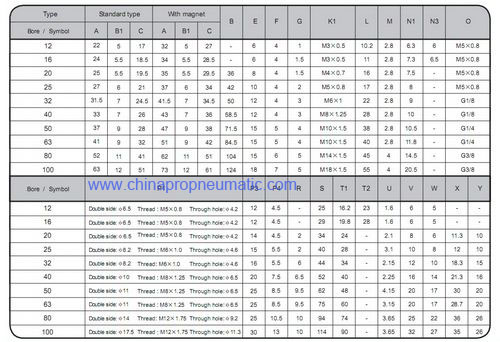

Dimension of
SDA Series Thin Type Air Cylinder:

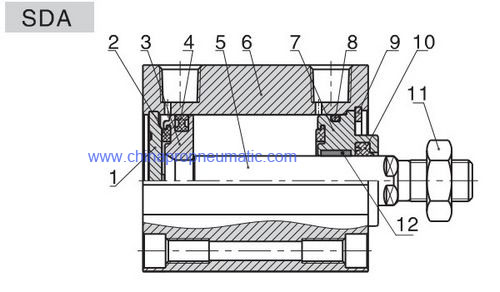

Structure of
