4A220-08 Pneumatic Control Valve
Model No: SL-4A220-08
Place of Origin: Zhejiang,China (Mainland)
Brand Name: Sinolink

inquire
basketAdd to Basket
Enlarge4A220-08 Pneumatic Control Valve
Previous 1 2 3 4
arrow 4A220-08 Pneumatic Control Valve Description
Payment & Shipping Terms
Payment Term: T/T,L/C,D/A,D/P,WU
MOQ: 100 Piece/Pieces
Means of Transport: Ocean
Supply Capacity
Production Capacity: 100000
Packing: AS REQUIRED
Delivery Date: NEGOTIABLE
Product name: 4A220-08 Pneumatic Control Valve
Model Number: SL-4A220-08

----- 4A220-08 Pneumatic Control Valve

 Specification of 4A220-08 Pneumatic Control Valve:
Model
4A210-08
4A220-08
4A230C-08
4A230E-08
4A230P-08
Operation Type
Inside Pilot Type
Fluid Medium
40 Micron Filtered Air
Position and Way Number
Two-Position Five Way
Three-Position Five Way
Working Pressure
0.15--0.8Mpa(21--114psi)
Proof Pressure
1.2MPa(174psi)
Working Temperature
5--50℃
Port Size
Air Inlet=Air Outlet=G1/4, Exhaust=G1/8
Material
Aluminium Alloy
Highest Action Frequency
5 Cycles/second
Effective Sectional Area
16mm2(Cv=0.89)
12mm2(Cv=0.67)
Shortest Excitation Time
0.05 Second
Weight
185g
285g
365g

Application: automation control system in various industries like textile, gas & oil, agriculture, CNC Machining.

Ordering Code of 4A220 Series Pneumatic Control Valve:


Dimension of 4A220-08 Pneumatic Control Valve:

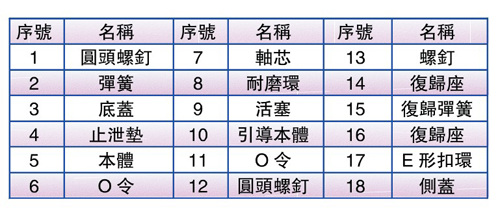

Structure of 4A220 Series Pneumatic Control Valve:





    4A220-08 Pneumatic Control Valve has been presented above, want more similar products, please click China Pneumatic Control Valve.
    Our 4A220-08 Pneumatic Control Valve is good in quality and competitive in price. We manufacture 4A220-08 Pneumatic Control Valve and supply OEM, ODM service according to your requirement.
    If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
